Isolation Ball Valve


http://www.ssvvalve.com//wp-content/uploads/2017/12/SSball.jpg

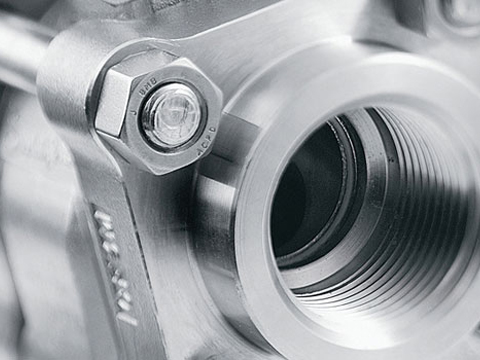

Soft Seat ( Resilient Seat )Stainless Steel Ball Valves

SSV supplies  a full line of  resilient seat stainless steel ball valve.
PROCESS                              Precision Casting
SIZE RANGE                         1/2" ~ 4"
RATING PRESSURE            ASME 150 ~ 300 Class
END CONNECTIONS         Flanged     Threaded
BODY MATERIALS             304SS     316SS     316L
http://www.ssvvalve.com//wp-content/uploads/2017/12/AutoBallvalve.jpg

Metal Seat  Ball Valves

Advances in coating technology and advanced design and precision machining allow SSV to provide absolute isolation with longer life expectancy in severe service applications. Chrome Carbide plus Specialty Fusion coatings make SSV Inc the leader in Metal Seated Ball Valve sealing integrity. Additionally, SSV offers a complete line of zero leakage metal seated Ball Valves for special industrial applications such as Catalyst Shutoff Valves, poly crystalline silicon process zero leakage valves and IGCC (Coal Gasification Combined Cycle) isolation valves for super abrasive, corrosive, high pressure and high temperature applications.
PROCESS                              Forged
CONFIGURATIONS             Floating Ball Valve      Trunnion Ball Valve
SIZE RANGE                         1/2" ~ 28"
RATING PRESSURE            ASME 150 ~ 2500 Class
END CONNECTIONS         Flanged     Butt Weld
COATING
http://www.ssvvalve.com//wp-content/uploads/2017/12/AIP6DBallValve.jpg

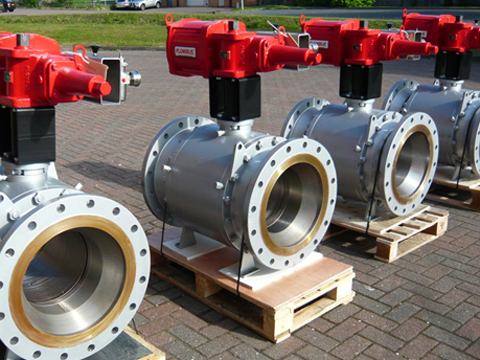

API6D Pipe Line Ball Valve

SSV manufactures some of the most dependable cast and forged steel Pipeline Ball Valves in the industry. Our products are manufactured and tested in accordance with respective API, ASME, and ANSI standards. With features such as double block and bleed capabilities, secondary sealant injections, and spring energized self relieving seats, the SSV design offers many features and options beneficial for oil, gas, and liquid applications making it one of the most preferred pipeline ball valves on the market.
PROCESS                             Forged     Casing
CONFIGURATIONS            Floating Ball Valve     Trunnion Ball Valve
TYPE                                     Side Entry     Top Entry
FUNCTIONS                        DBB ( Double Block and Bleed )   DIB( Double Isolation and Bleed )
SIZE RANGE                        1" ~ 32"
RATING PRESSURE            ASME 150 ~ 1500 Class
END CONNECTIONS         Flanged
